FFWO95A2

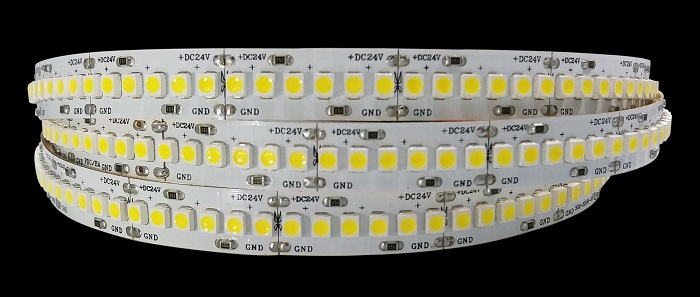

High quality LED strips, used in background decoration, exaggerate atmosphere, lighting place ,etc. With the features of low light decay, long life time. Multi-colors are available, able to ensure consistent CCT without any aberration, keeps same bin for every shipment.
FEATURES:
1. SMD encapsulated by pure gold wire,Ra>80,>90,>95 & high brightness.
2. Lead-free technology(RoHS), smooth solder point, solid and reliable connection;
Double layer FPCB, more stable electricity.
3. 3M 300LSE adhesive tape, more viscous. Multi-accessories available make convenient installation.
4. Multi-waterproof available: Naked PCB (IP20), Simple silicone coating(IP55), Gel coating(IP65),
silicone tube(IP66), glue filling (IP68), silicone extrusion (IP68C), All water-proof items adopt high quality silicone gel, against UV.
PARAMETERS :
|
Volt. (V) |
24vdc |
LED Qty(pcs) |
240LEDs/m |
Wire |
18AWG |
|
Power(W) |
19.2W max/m |
Beam angle(°) |
120° |
Cascade |
5 meters |
|
LED(SMD) |
2835 |
Dimension(mm) |
5000*10*1.2 |
Working Temp.(℃) |
-25~60℃ |
|
Lumens/m |
2000±100lm |
IP rate |
IP20 |
Working humidity |
40%-70% RH |
|
CRI |
>80+ |
PCB material |
Rolled Copper |
Warranty(Hrs) |
3years |
|
Wire of LED |
golden wire |
PCB |
Double layer |
Lifespan |
35000Hrs |
A. Testing temperature by 25±2℃[77±3.6℉];
B. The above data is a typical, the real testing will be a little difference.
C. Data will be notified if any changes are made.
D. Different CCT available, 2700-12000K.
APPLICATION :
Our product is suitable for KTV, shopping malls, cabinets and other places decoration
or contour outline etc., as a decorative lighting applications.
