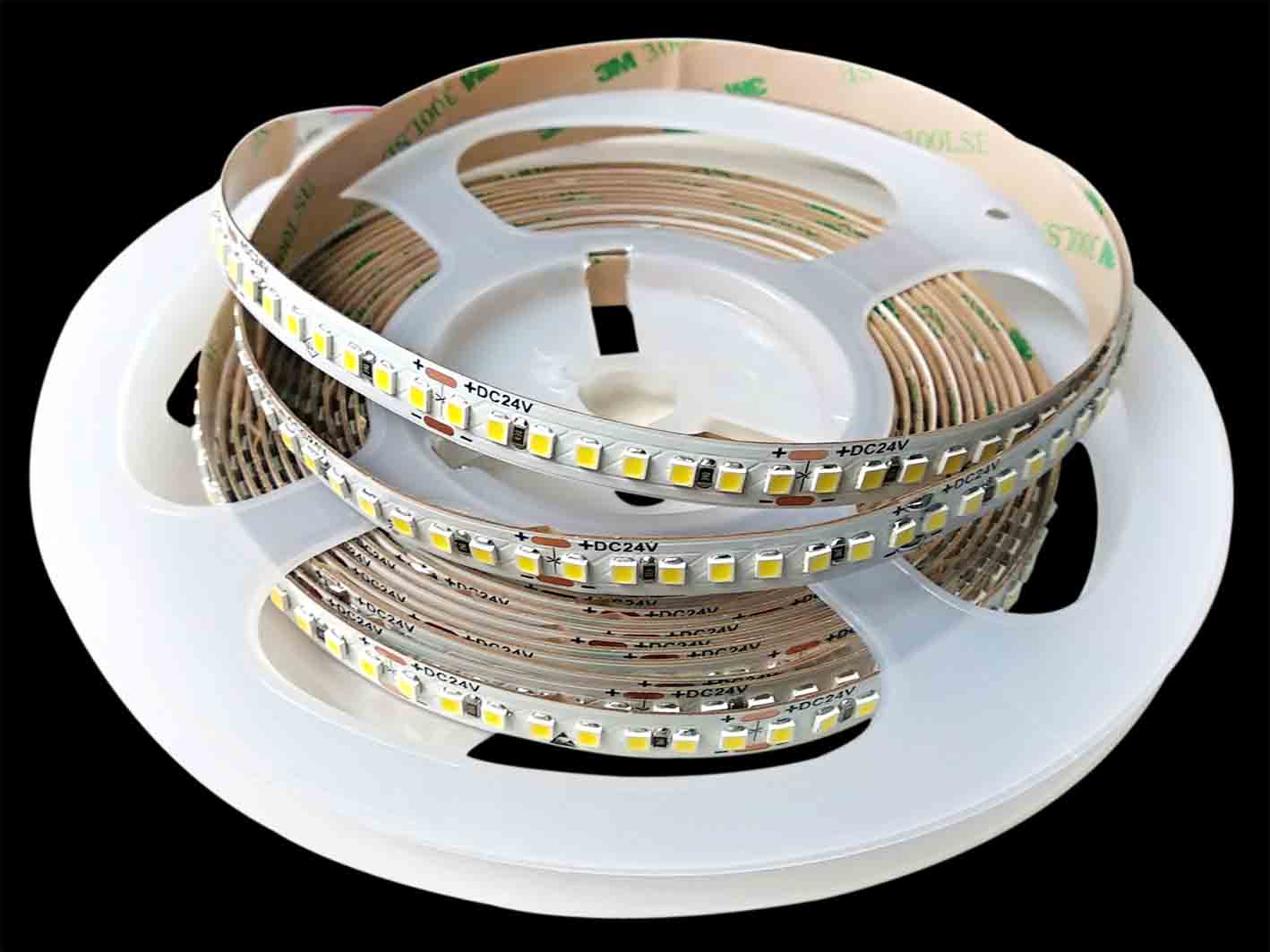

FFW0B6B2
High quality LED strips, used in background decoration, exaggerate atmosphere, lighting
place ,etc. With the features of low light decay, long life time. Multi-colors are available, able to ensure consistent CCT without any aberration, keeps same bin for every shipment.
FEATURES :
1. SMD encapsulated by pure gold wire,Ra>80,>90,>95 & high brightness.
2. Lead-free technology(RoHS), smooth solder point, solid and reliable connection;
Double layer FPCB, more stable electricity.
3. 3M 300LSE adhesive tape, more viscous. Multi-accessories available make convenient installation.
4. Multi-waterproof available: Naked PCB (IP20), Simple silicone coating(IP55), Gel coating(IP65),
silicone tube(IP66), glue filling (IP68), silicone extrusion (IP68C), All water-proof items adopt high quality
silicone gel, against UV.
PARAMETERS :
Volt. (V)
24vdc
LED Qty(pcs)
192LEDs/m
Wire
18AWG
Power(W)
18W max/m
Beam angle(°)
120°
Cascade
3 meters
LED(SMD)
2835
Dimension(mm)
5000*10*1.2
Working Temp.(℃)
-25~60℃
Lumens/m
2700±100lm
IP rate
IP20
Working humidity
40%-70% RH
CRI
>80+
PCB material
Rolled Copper
Warranty(Hrs)
3years
Wire of LED
golden wire
PCB
Double layer
Lifespan
35000Hrs
A. Testing temperature by 25±2℃[77±3.6℉];
B. The above data is a typical, the real testing will be a little difference.
C. Data will be notified if any changes are made.
D. Different CCT available, 2700-12000K.
Our product is suitable for KTV, shopping malls, cabinets and other places decoration
or contour outline etc., as a decorative lighting applications.
